Description

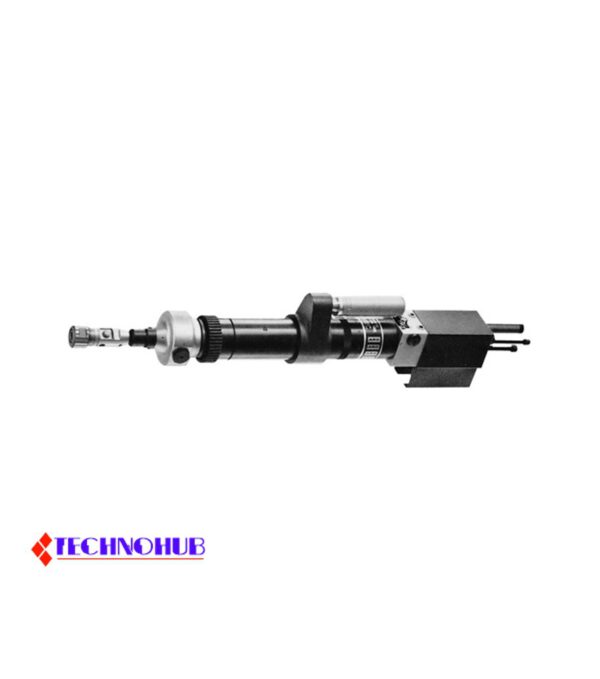

Ingersoll Rand’s line of feed drills provide the selection, performance, and degree of precision to automate a wide range of secondary machining applications simply and economically. They utilize compressed air for both the spindle rotation and feed / control functions. The reliable rotary-vane air motor offers high power-to-size performance, which minimizes tool size and weight for added machine design flexibility. The tools install easily, requiring only simple pneumatic circuitry.
Features
Bant-A-Matic: 3/16″ (4.8 mm) Capacity, Steel .25 HP (.20 kW)
Par-A-Matic: 5/16″ (7.9 mm) Capacity, Steel .50 HP (.37 kW)
Super Par-A-Matic Drills: 1/2″ (12.7 mm) Capacity, Steel .75 HP (.56 kW)
Hi-Thrust: 5/8″ (15.9 mm) Capacity, Steel 1.25 HP (.93 kW)
- Double-acting air piston provides smooth, controlled forward and retract strokes.
- Needle valve controls allows adjustment of forward and retract strokes.
- Adjustment screw provides infinite stroke length settings.
- Ball bearing spindle support offers precision and long service life.
- Muffled exhaust for a quieter work environment.
- Custom models and accessories are available.
| Models | Models & Stroke Length in. (mm) | Models & Stroke Length in.(mm) |
| Bant-A-Matic: 8245 Series | … | … |
| 1-1/4″ (32 mm) | 2.0″ (51 mm) | 3.0″ (76 mm) |
| *8245-203-1 | 8245-203-2 | 8245-203-3 |
| 8245-101-1 | 8245-101-2 | 8245-101-3 |
| 8245-B45-1 | 8245-B45-2 | 8245-B45-3 |
| 8245-B30-1 | 8245-B30-2 | 8245-B30-3 |
| 8245-B8-1 | 8245-B8-2 | 8245-B8-3 |
| Par-A-Matic 8255: Series | … | … |
| 1-1/4″ (32 mm) | 2.0″ (51 mm) | 3.0″ (76 mm) |
| *8255-172-1 | 8255-172-2 | 8255-172-3 |
| 8255-101-1 | 8255-101-2 | 8255-101-3 |
| 8255-A50-1 | 8255-A50-2 | 8255-A50-3 |
| 8255-A28-1 | 8255-A28-2 | 8255-A28-3 |
| 8255-A21-1 | 8255-A21-2 | 8255-A21-3 |
| 8255-A14-1 | 8255-A14-2 | 8255-A14-3 |
| 8255-A8-1 | 8255-A8-2 | 8255-A8-3 |
| 8255-A5-1 | 8255-A5-2 | 8255-A5-3 |
| Super Par-A-Matic: 8265 Series | … | … |
| 1-1/2″ (38 mm) | 3.0″ (76 mm) | 3.0″ (76 mm) |
| *8265-171-1 | 8265-171-3 | 8265-171-3 |
| 8265-46-1 | 8265-46-3 | 8265-46-3 |
| 8265-25-1 | 8265-25-3 | 8265-25-3 |
| 8265-12-1 | 8265-12-3 | 8265-12-3 |
| 8265-6-1 | 8265-6-3 | 8265-6-3 |
| 8265-3-1 | 8265-3-3 | 8265-3-3 |
| Hi-Thrust: 8670 Series | … | … |
| 8670-47-3 | 3.0 (76) | 3.0 (76) |
| 8670-28-3 | 3.0 (76) | 3.0 (76) |
| 8670-13-3 | 3.0 (76) | 3.0 (76) |
| 8670-8-3 | 3.0 (76) | 3.0 (76) |
| 8670-4-3 | 3.0 (76) | 3.0 (76) |
| Brand | No. | PRODUCT CODE | Name |
| Ingersoll-Rand | – | – | Pneumatic-Self-Feed-Drills |
