FA2i

FA2i-24XK1

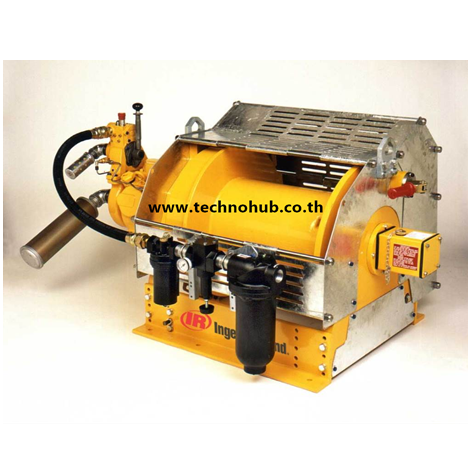

INGERSOLL-RAND Force Five Infinity Air WINCH Series

TECHNICAL DATA

  • Utility Lifting capacity 2,000 Kgs (@Top Layer), Lifting capacity 4,154 Kgs (@first layer)
  • Speed 16 M/min (@Top Layer)
  • Storage capacity 255 meters. (@wire rope diameter 16 mm)
  • Recommend minimum wire rope Dia. 13 mm.
  • Air inlet port 1 – 1/4″ NPT.
  • Weight (w/o wire rope) 386 Kgs.

Download Catalog below


Force 5 Infinity air  winch

Description

กว้านยกของ , Air winch, Force Five series, (FA2i-24XK1)

INGERSOLL-RAND Force Five Infinity Air WINCH Series

Feature

  • Meets ANSI / ASME B30.7
  • Minimum 5:1 design factor at rated load
  • Top layer rated line pull. A Force 5i winch always pulls or lifts its rated capacity at any layer.
  • Minimum 18:1 drum diameter to wire rope diameter ratio reduces wire rope wear
  • Compact gearbox-in-drum design
  • Group of mechanism as per FEM: 5m
  • ATEX classification (as per directive EC 94/9/EEC). CE compliant (EX II 2 GD c 200°CX.)
  • Standard models are suitable for ATEX zone 1 and 2.
  • Powerful Radial Piston Air Motor
  • Multiple Brake Configurations (Auto Disc Brake is standard)

Download Catalog below


Force 5 Infinity air  winch
