3/8″ (15QMAX)

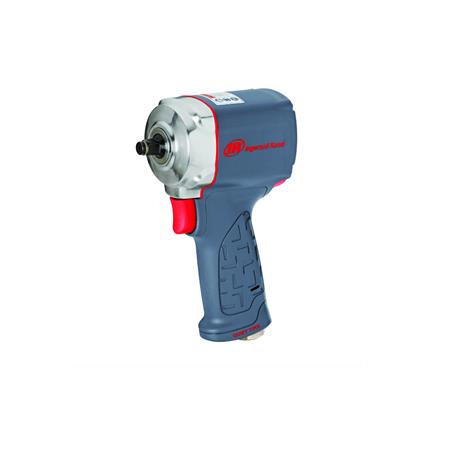

3/8″ Air impact Tool (Model: 15QMax)

3/8″ Air impact Tool (Model: 15QMax)

Specification:-

  • Max Forward Torque : 310 ft-lbs (420 Nm)
  • Max Revesre Torque : 380 ft-lbs (520 Nm)
  • Nut Busting Torque : 475 ft-lbs (650 Nm)
  • Impact blow per minute 1,350 BPM
  • Free speed 6,000 rpm
  • Impact Sound level 89.7 dBA
  • Free speed Sound level 83.7 dBA
  • Vibration: 5.5 m/s2
  • Weight 1.1 kgs.
  • Overall Length 117 mm
  • Anvil Square Drive 3/8″ with hog Ring type
  • Air inlet port 1/4″ NPT(Female)

Download Catalog below

Description

3/8″ Air impact Tool (Compact Type) “Ingersoll Rand” (15QMAX)

3/8″ Air impact Tool (Compact Type) “Ingersoll Rand” (15QMAX)

Model: 15QMAX

Feature:

  • 3/8″ Anvil with standard anvil and hog ring socket retainer.  (ปืนลม ขนาดแกน 3/8 นิ้ว รุ่น กระทัดรัด)
  • Pistol-style (ลักษณะด้ามปืน)
  • Power – Delivering 380 ft-lbs. (520 Nm) of max reverse torque at only 2.4 pounds (1.09 kgs) there is less added weight so you can power through those tough stretches of work in no time. (สามารถ นำส่งกำลัง ขับได้สูงสุด 380 ft-lbs. (520 Nm) ในทิศทาง ทวนเข็มนาฬิกา น้ำหนักตัว เครื่อง หนักเพียง 2.4 lbs (1.09 กก)
  • Compact Design – The stubby 4.6˝ (117 mm) length and compact design help do work you never even dreamed of reaching. Improved ergonomics give you total control to get up, under, over, or around any tough job. (ออกแบบรูปทรงกระทัดรัด โดยมีความยาวเพียง 4.6 นิ้ว (117 มม) สำหรับ งานที่แคบ)
  • Control – The one-handed forward/reverse push button and 3-mode power regulator give you max control, so you never do more work than you have to. It features 3 different regulation settings (in forward) on its easy to operate power regulator dial. (การควบคุมการทำงานของปืนลม สามารถ ควบคุม โดยใช้เพียง มือข้างเดียว สำหรับ เปลี่ยนทิศทาง การขัน ไม่ว่าจะเป็น ขัน ตามเข็ม หรือ ทวนเข็มนาฬิกา พร้อมทั้งยังมี สวิทซ์ ปรับ ระดับความแรง ได้ 3 ระดับ ในทิศทาง ตามเข็ม นาฬิกา)
  • TwinHammer™ mechanism (Mechanism ภายใน ออกแบบ มาเป็น Twin Hammer)
  • Patented one-hand forward / reverse for easy operation



Download Catalog below
