Description
Features :
Lightweight
The 22 Series of large drills is strong but lightweight for increased ease of use.
Side Exhaust
All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
Governed Motor
No matter which large drill series you’re interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.
| 22 Series: | 33, 44 and 551 Series: |
|
|
Model Specifications :
| Model | Free Speed (RPM) | Capacity in Steel Drilling in (mm) | Capacity in Steel Reaming in (mm)) | Spindle | Max Power hp (kw) | Length of Feed in (mm) | Weight lbs (kg) | Height over Spindle in (mm) |
| 22JA1 | 1025 | 9/16 (14) | 3/8 (10) | Stub taper, threaded chuck | 1.75 (1.31) | 2.5 (63) | 15 (6.8) |
16.38 (416) |
| 22KA1 | 725 | 9/16 (14) | 7/16 (11) | Stub taper, threaded chuck | 1.75 (1.31) | 2.5 (63) | 15.25 (6.92) |
17.63 (448) |

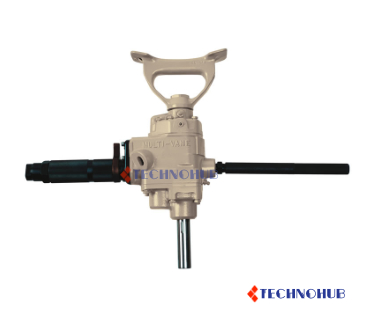

| 22MA1 | 350 | 7/8 (22) | 5/8 (16) | No. 2 Morse taper | 1.75 (1.31) | 2.5 (63) | 14.25 (6.46) |
18.63 (473) |
| 22KWA1 | 725 | n/a | n/a | Stub taper, threaded wood | 1.75 (1.31) | 2.5 (63) | 14.25 (6.46) |
17.25 (438) |
| 33SJA | 450 | 1 (25) | 15/16 (24) | No. 3 Morse taper | 3 (2.24) | 4.25 (108) | 25.75 (11.7) |
14 (355) |

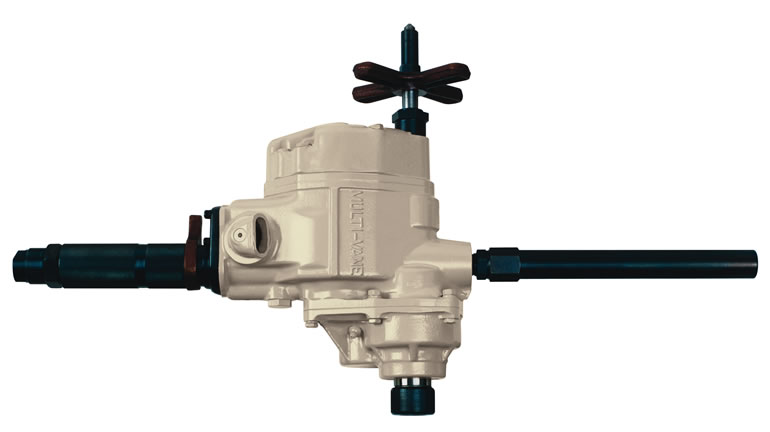

| 33SKA | 300 | 1-1/4 (32) | 1 (25) | No. 3 Morse taper | 3 (2.24) | 4.25 (108) | 25.75 (11.7) |
14 (355) |
| 33SMA | 185 | 1-1/4 (32) | 1-1/4 (32) | No. 3 Morse taper | 2.9 (2.16) | 4.25 (108) | 31 (14.10) |
16.81 (427) |
| 44SMA | 155 | 2 | 2 (51) | No. 4 Morse taper | 3.6 (2.69) | 4.25 (108) | 43.75 (19.8) |
18.25 (463) |

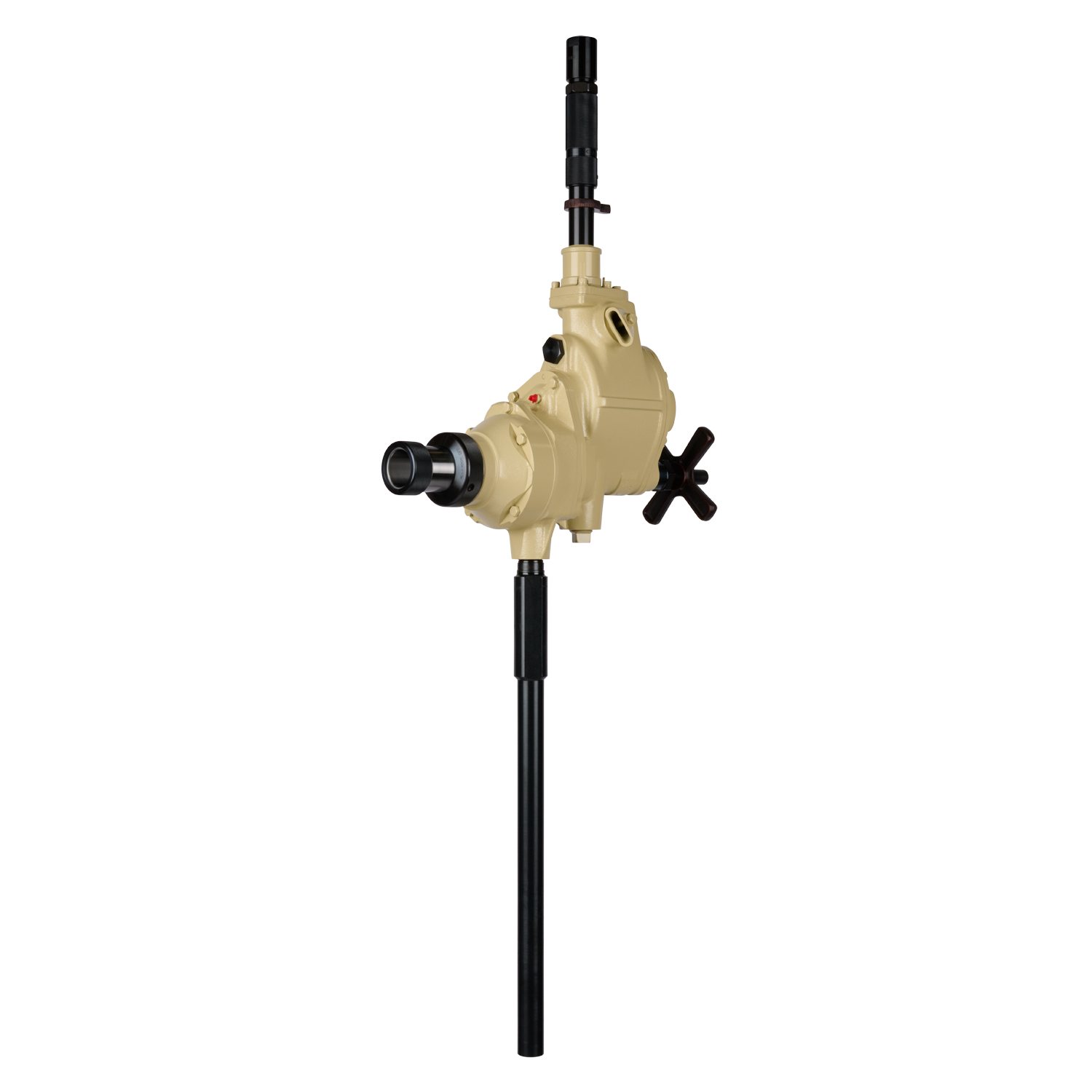

| 551SMA | 120 | 3 | 2-1/2 (64) | No. 5 Morse taper | 5.6 (4.18) | 5 (127) | 69 (31.3) |
21.88 (556) |
| 551SOA | 77 | Heavy | Heavy | No. 5 Morse taper | 5.6 (4.18) | 5 (127) | 69.5 (31.5) |
21.88 (556) |
