PRECISION INDUSTRIAL EQUIPMENT

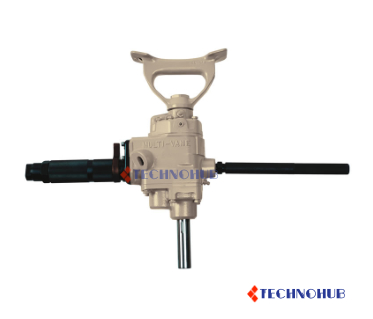

22, 33, 44, and 551 Series Large Drills
We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications up to 22mm holes, while the 33, 44, and 55 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 and 3 inches.
ดูรายการที่เลือก →ให้คำปรึกษาโดยทีมงาน · ติดต่อ 02 136 3980
รายละเอียดผลิตภัณฑ์
TECHNICAL INFORMATIONFeatures :
Lightweight
The 22 Series of large drills is strong but lightweight for increased ease of use.
Side Exhaust
All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
Governed Motor
No matter which large drill series you’re interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.
Model Specifications :
TECHNOHUB
Hot line Tel: 086-340-3868
Pre-Order
==เพียงบอกว่ามาจากช่องทาง Online เพื่อรับส่วนลดสุดพิเศษ==
Email: sales@technohub.co.th
Web: www.technohub.co.th
Facebook: Technohub2002
IG: Technohub2002
ตัวแทนจำหน่าย เครื่องมือช่าง Ingersoll-Rand Impact-Wrench-บล็อกลม-บล็อกไฟฟ้า
เครื่องเจียรลม-หุ่นยนต์ส่งของ-RTLS-USAG
| 22 Series: | 33, 44 and 551 Series: |
|
|
| Model | Free Speed (RPM) | Capacity in Steel Drilling in (mm) | Capacity in Steel Reaming in (mm)) | Spindle | Max Power hp (kw) | Length of Feed in (mm) | Weight lbs (kg) | Height over Spindle in (mm) |
| 22JA1 | 1025 | 9/16 (14) | 3/8 (10) | Stub taper, threaded chuck | 1.75 (1.31) | 2.5 (63) | 15 (6.8) |
16.38 (416) |
| 22KA1 | 725 | 9/16 (14) | 7/16 (11) | Stub taper, threaded chuck | 1.75 (1.31) | 2.5 (63) | 15.25 (6.92) |
17.63 (448) |
| 22MA1 | 350 | 7/8 (22) | 5/8 (16) | No. 2 Morse taper | 1.75 (1.31) | 2.5 (63) | 14.25 (6.46) |
18.63 (473) |
| 22KWA1 | 725 | n/a | n/a | Stub taper, threaded wood | 1.75 (1.31) | 2.5 (63) | 14.25 (6.46) |
17.25 (438) |
| 33SJA | 450 | 1 (25) | 15/16 (24) | No. 3 Morse taper | 3 (2.24) | 4.25 (108) | 25.75 (11.7) |
14 (355) |
| 33SKA | 300 | 1-1/4 (32) | 1 (25) | No. 3 Morse taper | 3 (2.24) | 4.25 (108) | 25.75 (11.7) |
14 (355) |
| 33SMA | 185 | 1-1/4 (32) | 1-1/4 (32) | No. 3 Morse taper | 2.9 (2.16) | 4.25 (108) | 31 (14.10) |
16.81 (427) |
| 44SMA | 155 | 2 | 2 (51) | No. 4 Morse taper | 3.6 (2.69) | 4.25 (108) | 43.75 (19.8) |
18.25 (463) |
| 551SMA | 120 | 3 | 2-1/2 (64) | No. 5 Morse taper | 5.6 (4.18) | 5 (127) | 69 (31.3) |
21.88 (556) |
| 551SOA | 77 | Heavy | Heavy | No. 5 Morse taper | 5.6 (4.18) | 5 (127) | 69.5 (31.5) |
21.88 (556) |
