Sale!

PT005-8

5,800.00 ฿ 4,350.00 ฿

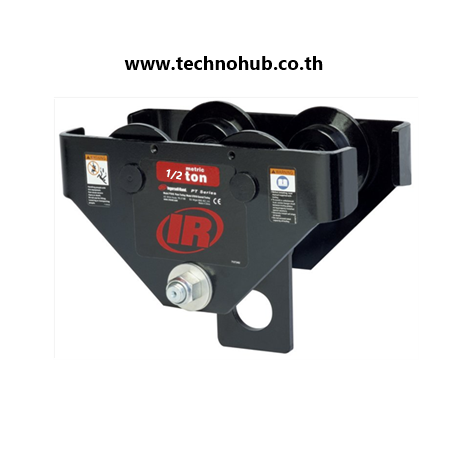

“INGERSOLL-RAND” Plain Trolley 0.5 T (PT005-8)

“INGERSOLL-RAND” Plain Trolley 0.5T (PT005-8)

MODEL: PT005-8

TECHNICAL DATA

  • Capacity 0.5 Tons
  • Meets pertinent U.S. (ASME/ANSI and CMAA), Canadian and European standards.
  • The 5:1 design factor allows use with both manual or powered hoists.
  • Weight 8.95 Kgs.
  • Flange adjust width 2.6 – 8 inch (66.04 – 203 mm) -> Optional Extension Shaft Kit (For more detail please feel free to contact us.)

Download Catalog below

Description

“INGERSOLL-RAND” Plain Trolley (PT – series)

“INGERSOLL-RAND” Plain Trolley (PT series):  0.5 – 10 metric ton Capacity.

PT plain and GT hand-geared hook-on style trolley rated for manual or powered hoists having the versatility to fit most types of beams with compatibility to all hoist brands.

Feature & Benefit:

  • The 5:1 design factor allows use with both manual or powered hoists. Meets pertinent U.S. (ASME/ANSI and CMAA), Canadian and European standards.
  • The side plates, including the rail sweeps/drop stops, are made of cold-formed steel for strength, durability, and even load distribution.
  • The wheels are cast iron and the universal tread fits either flat or tapered beams.
  • Wheels run on sealed, “Lube-for-Life” ball bearings. Smoother rolling with less effort and maintenance.
  • Additional gearing in the 20-ton trolley allows operation by one hand chain.
  • Painted black for coordination with hoists of all colors.

Optional:

  • FDA-approved nickel composite plated finish for corrosion resistance — available on PT005 and PT010 only
  • Solid bronze alloy wheels for maximum spark resistance
  • Wider hanger shaft capabilities allow standard trolleys to fit almost any S-beam or patented track beam, extension shaft kits are stocked

Download Catalog below
