MR150

MR150

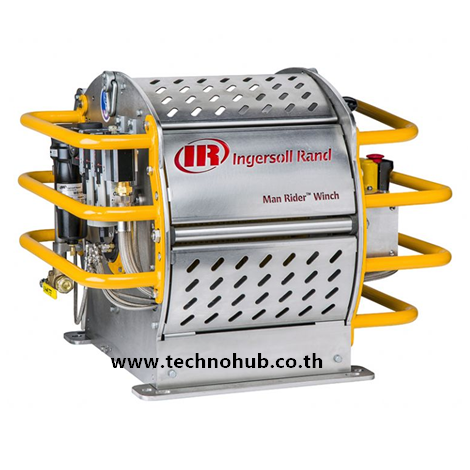

INGERSOLL-RAND Man rider Air WINCH Series

TECHNICAL DATA

  • Air motor Gear Type
  • Lifting capacity 150 kg (@Top Layer)
  • Speed 30 M/min (@Top Layer)
  • Storage capacity 180 meters. (@wire rope diameter 10 mm)
  • Working Rope Storage Capacity 2nd Layer (w/10 mm rope) 55 meters
  • Weight (w/o wire rope) 210 Kgs.

Download Catalog below

MR150 Man rider winch Brochure

Description

MR150

INGERSOLL-RAND Man rider Air WINCH Series

Feature

Safety is no Accident


  • Overload Protection: Senses when tension exceeds capacity and prevents operation
  • Slack Line Prevention System: Automatically stops the winch from paying out in case of slack wire
  • Integrated Emergency Lowering System: Standard integrated system lowers a rider in case of power failure
  • Automatic Multi-Disc Brake and Automatic Drum Brake: Provides the safety of redundant braking systems

Offshore and Oilfield Tough


  • Steel Guards: Protects critical components mounted on the winch
  • Stainless Steel Braided PTFE Hoses: For superior corrosion resistance
  • Stainless Steel Drum Guards: Provides outstanding corrosion resistance and adjusts for multiple takeoff angles
  • Stainless Steel and Brass Fittings: For long-lasting corrosion resistance
  • Marine Grade Paint: On carbo-zinc blasted steel provides superior corrosion resistance

Built with Over 90 Years of Experience


  • Easily Accessible Bolt Patterns: Makes installation simple and matches legacy bolt patterns for seamless replacement
  • CE and ATEX Compliance: Meets EU and ATEX Zone 1 directives standard. ATEX Zone 2 compliance and DNV/ABS type approvals are available.
