BOP Air hoist

“BOP” Air chain hoist

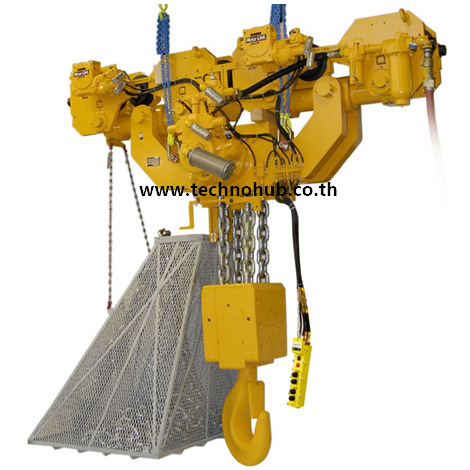

“INGERSOLL-RAND” BOP – Air Chain Hoist

GUIDE LINE TECHNICAL DATA

  • Available capacity 25 Ton to 200 Tons (Please contact us for more detail.)
  • Available 2 Type of Air motor (Piston motor or Gear Motor)

Download Catalog below



HercuLink™ Air BOP
(50 – 200 Ton)


LiftChain Air BOP
Flyer (25 – 75 Ton)

Description

“BOP” Air chain hoist

“INGERSOLL-RAND” BOP – Air Chain Hoist

Feature & Benefit:

  • Rugged, Oil Field Tough Design Features: All steel and cast iron construction. 100% duty cycle. True vertical lift. Fully enclosed, planetary gearing. Zinc plated load chain. Corrosion resistant fasteners, Corrosion resistant Marine 812 finish paint. All hooks ride on bearings for easier movement under load. Water drains, grease points on all bottom blocks. Lifting lugs for easy installation. Galvanized steel chain container. Trolley guide rollers, rubber bumpers, and rail sweeps. Manufacturer test certificate and maintenance manual.
  • Enhanced Safety: 5:1 design factor. Automatic Fail Safe, multi disc, motor brake on hoist. Upper and lower limit travel switches. 16 and 22 mm heat treated and calibrated load chain per Din 5684.
  • Suitable for Hazardous Explosion Proof Environments: Air motors (unlike electric motors) are inherently explosion proof. Spark and corrosion resistant versions available.
  • Versatile Design: Low and Ultra-Low™ versions available. Articulated trolley allows limited side pulling operations. Options include: Spark and corrosion resistant (S•COR•E) packages. Rack and pinion trolley drive for positive traction. Clevis and shackle attachment in lieu of bottom hook. Festooning systems. CE compliant models including overload protection and main emergency stop device. Corrosion resistant Marine 812-X paint system. Sandblast and carbozinc (primer only). Custom designed air control consoles.
