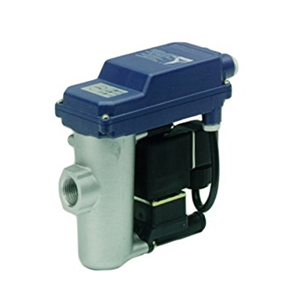

ฺBEKOMAT® 12 CO

BEKOMAT® 12 CO

CODE: KA12C10A0

TECHNICAL DATA:

  • Aluminium housing, & Hard coated
  • Supply voltage 230 Vac, 50Hz, 1Hz
  • Inlet Temperature (min/max) °C : 1/60
  • Compressed Air flow capacity max 4 m3/min.
  • Condensate port: 1 x G 1/2
  • Pressure (min/max): 0.8/16 barg

Download Catalog

(***หมายเหตุ ราคานี้เป็น ราคาโปรโมชั่น มีสินค้า จำนวนจำกัด กรุณา โทรสอบถามจากทางเจ้าหน้าที่ ก่อนสั่งซื้อสินค้า)



Description

BEKOMAT® 12 CO

CODE: KA12C10A0

BEKOMAT®

The BEKOMAT® electronic system now calculates the discharge rate down to the minimum point and uses this figure to determine the exact valve opening period required. The valve will again be fully closed and leakproof before any compressed air can escape.

Should the condensate discharge fail to function properly (blocked discharge pipe, faulty diaphragm), the device will change to the alarm mode after 60 seconds. In this case, the red LED flashes and, if desired, the alarm signal is relayed via a potential-free contact. While in the alarm mode, the solenoid valve will open every 4 minutes for a period of 7.5 seconds. This ensures that a BEKOMAT® unit filled in an unpressurized state will, under pressure, automatically revert to normal operating conditions and thus clear the alarm.

From the BEKOMAT® the condensate can flow for treatment into the ÖWAMAT® oil-water separator which is designed to deal with condensate contaminated with free and dispersed non-emulsified oil. In the case of stable emulsions, our BEKOSPLIT® emulsion splitting plant will clean up the condensate leaving only a minimum of waste for disposal. Either system will help your company to conform to the legal requirements concerning the treatment & discharge of compressed air condensate.

Download Catalog
