SMB050-10-8V (Bearing)

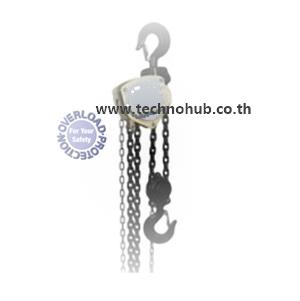

รอกโซ่ 5 ตัน “INGERSOLL-RAND” (Silver series)

รอกโซ่ 5 ตัน “INGERSOLL-RAND” (Silver series)

Manufacturer Code: SMB050-10-8V

TECHNICAL DATA

  • รับน้ำหนัก ได้ 5 ตัน (ค่ามาตรฐาน ความปลอดภัย 5:1)
  • Load test 150% (7.5 ตัน)
  • จำนวน โซ่ 2 เส้น ยาว 3 เมตร (Hook Path) (สามารถเพิ่มความยาวโซ่ตามต้องการได้ – Optional)
  • มาตรฐานการผลิต ASME B30.16, HST-2M
  • ติดตั้งมาพร้อม overload protection clutch (standard) ป้องกัน ไม่ให้ พนักงาน ยกเกิน พิกัด ที่รอกรับได้
  • แรงดึง ขณะ ยกสินค้า ขนาด 5 ตัน ออก แรงเพียง 37.7 กก.
  • โซ่ ยก มีขนาด 9 x 27.2 มม.(2 Fall) (ชุบ ZINC ป้องกันการเกิดสนิม Optional)
  • น้ำหนัก ของ ตัว รอกโซ่ หนัก 37.72 กก. (รวม น้ำหนักโซ่ยก ยาว 3 เมตร)

Download Catalog below

“Ingersoll Rand” Manual Chain Hoist (SMB-series)

Description

Manual Hoist, รอกโซ่ 5 ตัน “INGERSOLL-RAND” (SMB – series)

Manual Hoist, รอกโซ่ 5 ตัน “INGERSOLL-RAND” (SMB series)

Ingersoll Rand SMB Silver Series manual chain hoists offer the strength and durability you need in tough lifting situations. Their high-strength, all-stamped steel construction provides decreased weight and better impact resistance. In addition, the hoists feature roller bearings on input shafts for easier lifting.

Feature & Benefit:

  • Encased and retained roller bearings for increased efficiency and ease of maintenance.
  • Single chain fall through 3 tons.
  • Nickel / chrome-plated exterior and zinc-plated frame components for increased corrosion resistance.
  • Double hand-chain guides for smooth operation when pulling excess hand chain.
  • Open frame design for easy cleaning and inspection.
  • CE certified; hoists meet or exceed regional requirements including ASME B30.16, HST-2M.
  • Hardened swivel-latch hooks.
  • Overload protection; clutch slips in the lifting direction only

Download Catalog below

“Ingersoll Rand” Manual Chain Hoist (SMB-series)

TECHNOHUB

Hot line Tel: 086-340-3868

Pre-Order
==เพียงบอกว่ามาจากช่องทาง Online เพื่อรับส่วนลดสุดพิเศษ==

Email: sales@technohub.co.th
Web: www.technohub.co.th
Facebook:
Technohub2002
IG: Technohub2002
ตัวแทนจำหน่าย เครื่องมือช่าง Ingersoll-Rand Impact-Wrench-บล็อกลม-บล็อกไฟฟ้า
เครื่องเจียรลม-หุ่นยนต์ส่งของ-RTLS-USAG
