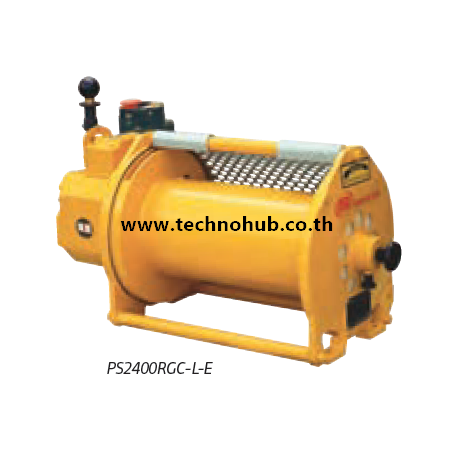

PS2400RGC-L

PS2400RGC-L

INGERSOLL-RAND PULLSTAR WINCH SERIES

One of the World’s first “lube free” Air Winches

TECHNICAL DATA

  • Pulling capacity 1,500 Kgs. (@Top Layer), 2,400 Kgs (@first layer)
  • Speed 7 M/min (@Top Layer), Speed 4 M/min (@first layer)
  • Storage capacity 120 meters.
  • Recommend minimum wire rope Dia. 10 mm.
  • Air inlet port 3/4″ NPT.
  • Weight (w/o wire rope) 76 Kgs.

Download Catalog below


Liftstar&Pullstar air winch

Description

กว้านลม , Air winch, Pull Star series, (PS2400RGC-L)

INGERSOLL-RAND PULLSTAR WINCH SERIES

One of the World’s first “lube free” Air Winches

The Ingersoll Rand LiftStar Winch Series, along with it’s other half: The PullStar Series; are the world’s first lubricant free Air Winches. Designed for conditions that are demanding and are filled with dirty air.

Feature

  • Lightweight and compact design, easy to carry.
  • Designed in conformity with the latest ASME B30.7 and European Standards (FEM classification 1 Bm)
  • Design factor 3.5:1 for lifting. (PULLSTAR®)
  • Reliable gear type air motor is made from composite material, The high efficiency planetary gear box and automatic disc brake ensure smooth  operation.
  • Free spool clutch on the PULLSTAR® pulling version
  • Internal muffler – low noise level, quiet operation. Less than 80 dba.
  • Variable speed and precise positioning through direct control lever or progressive remote pendent “PHS”
  • Maintenance free

Download Catalog below


Liftstar&Pullstar air winch
